Installation Guide

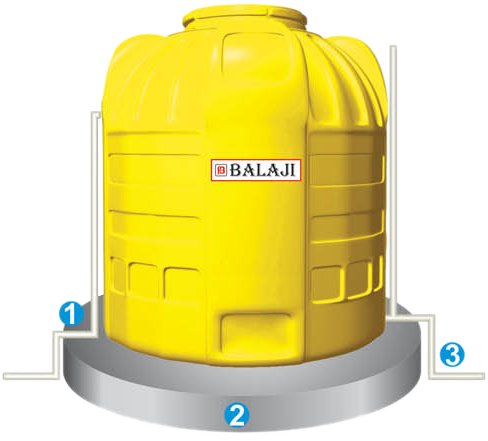

1. Flate level compacted base
It is essential to have your water tank on a FLAT LEVEL COMPACTED BASE. Concrete slab of brick, gravel with trowelled sand top surface must be at least 300mm to 400mm thick that extends beyond the diameter of the tank that should not be eroded by wind or rain.
2. Inspection of Base
Make sure that the surface area is free from sharp stones, free roots, iron bars or debris etc. the tank should be installed in upright position, supporting the entire base of the tank.
3. Sufficient space
Leave sufficient space between the tank and any surrounding structure to allow for expansion when the tank is filled. We recommended a minimum of 100mm all around.
4. Use of proper tools
Do not use chisel form making a hole in a tank, this can crack the tank wall. For leak proof fittings, always use a right tools for pipe fitting.
5. Supported pipe work
The pipe connections should be properly supported, unsupported pipe work puts excessive strain fitting and tank wall, this will lead to stress in the tank over a period of time.
Monocoque Body
Light weight, well balanced body supports stability, we play sage ensuring the highest standards with advanced solid manocoque structure, making sure that there is no compromise when it comes to your Sweet Home.
Bolder Ribs
Tanks score big when it comes looks. A bolder front ribs, muscular styling, a strong lower body that looks apart, striking new threaded lid makes it a masterpiece.
Supreme airtight treaded lid
- Airtight screwable lid
- Keeps water fresh
- Keeps dirt and flies out
- Does not blow in windy days
Plumber friendly
Multi outlet options along with inlet and overflow configuration help plumbers in easy connections.
